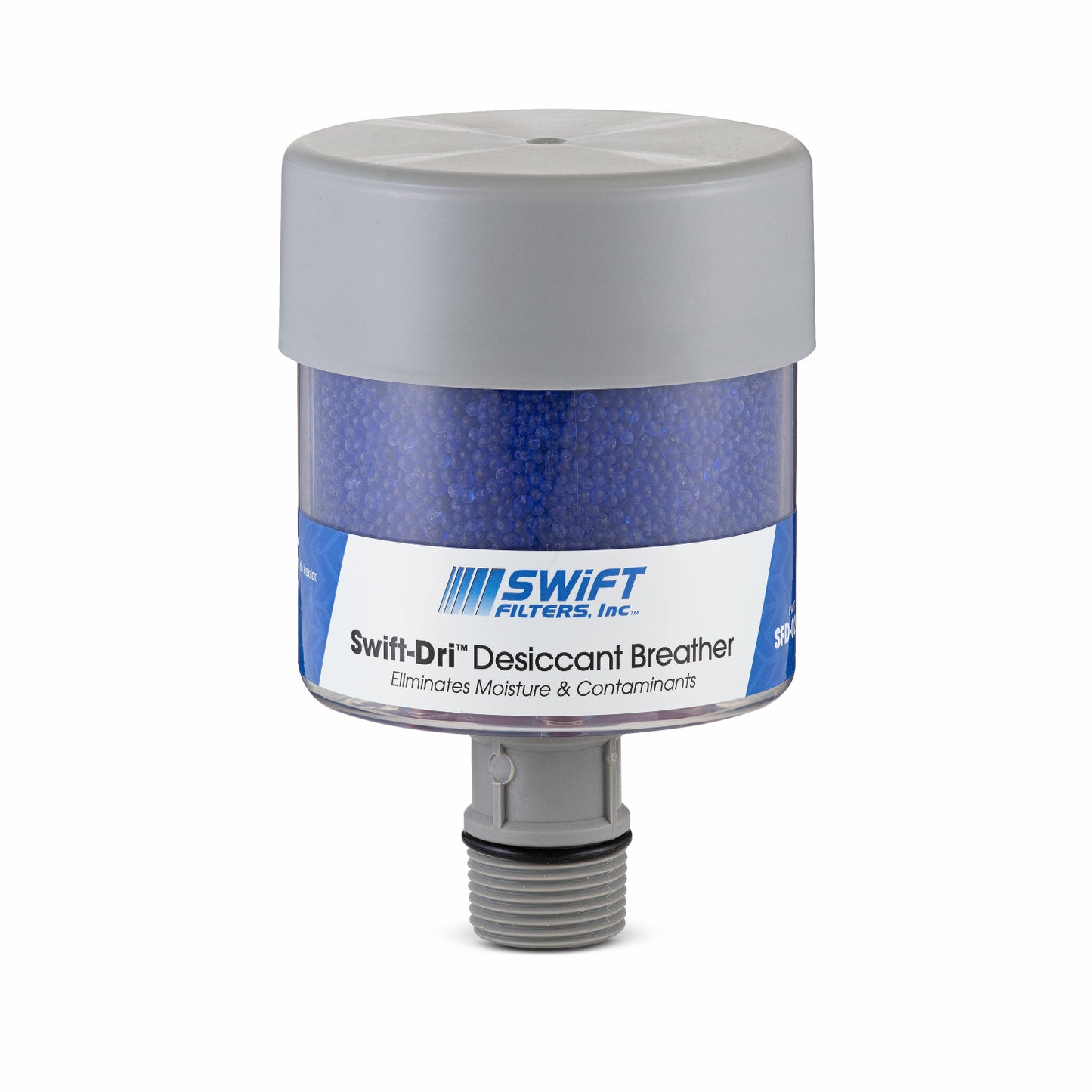

Desiccant Breather with Check Valve SFD-020-CV Moisture Retention: 4.8 fl. oz.

SWIFTDRI™ Desiccant Breather SFD-020-CV is a highly durable desiccant breather with a check valve designed to protect lubricants and equipment from moisture and dirt.

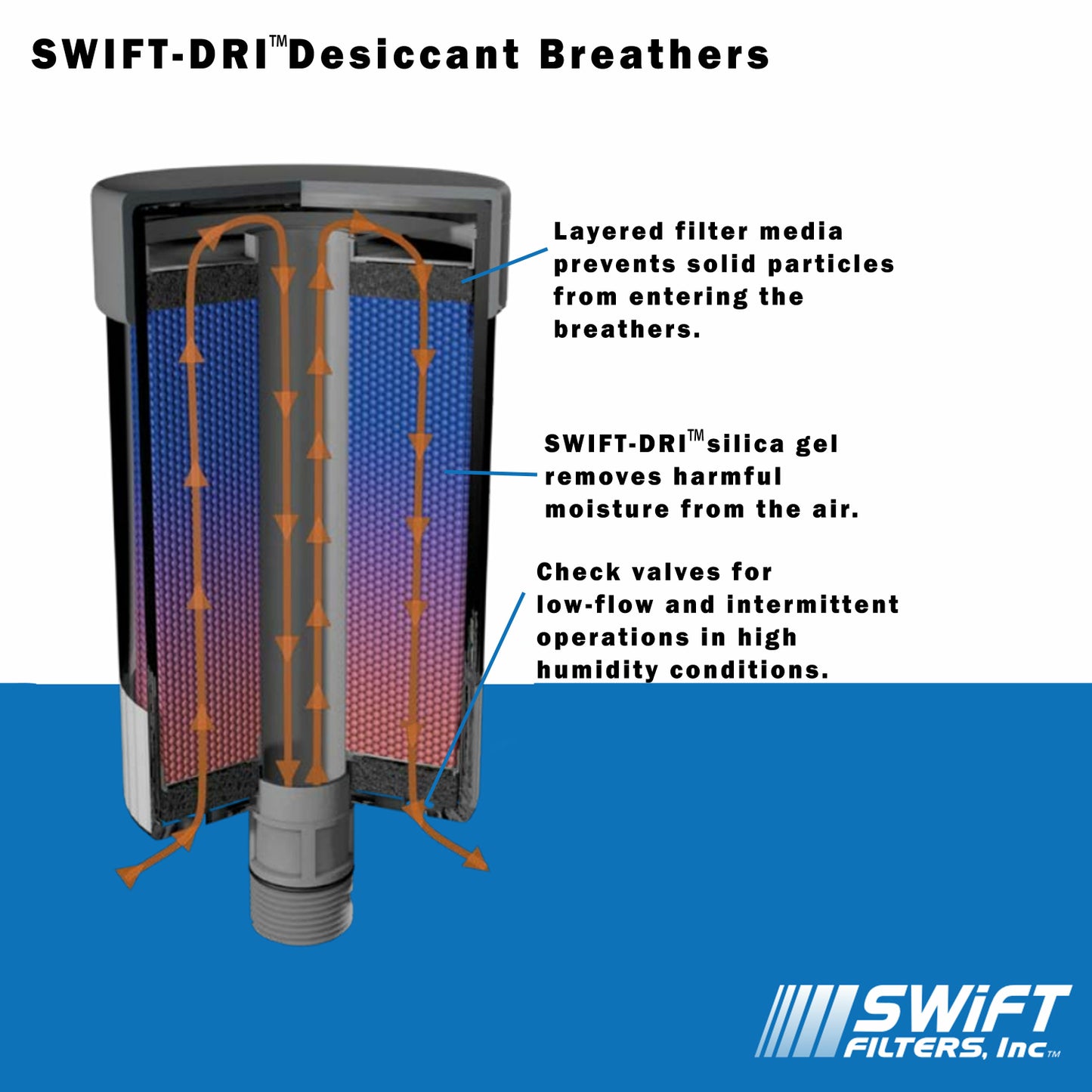

Triple Protection of Hydraulic Equipment
Multi-layered filter media prevents solid particles from contaminated air from entering the breather, reducing wear on equipment surfaces.

Silica beads inside the breather attract moisture from inside the equipment reservoir during service or shut-down, keeping equipment dry and free of particulates.

Features a check valve that isolates equipment in low-flow and intermittent operations in high humidity conditions, providing controlled breathing without backpressure. The check valve also prevents premature moisture saturation, extending breather life.

Swift-Dri Desiccant Breather with Check Valve SFD-020-CV

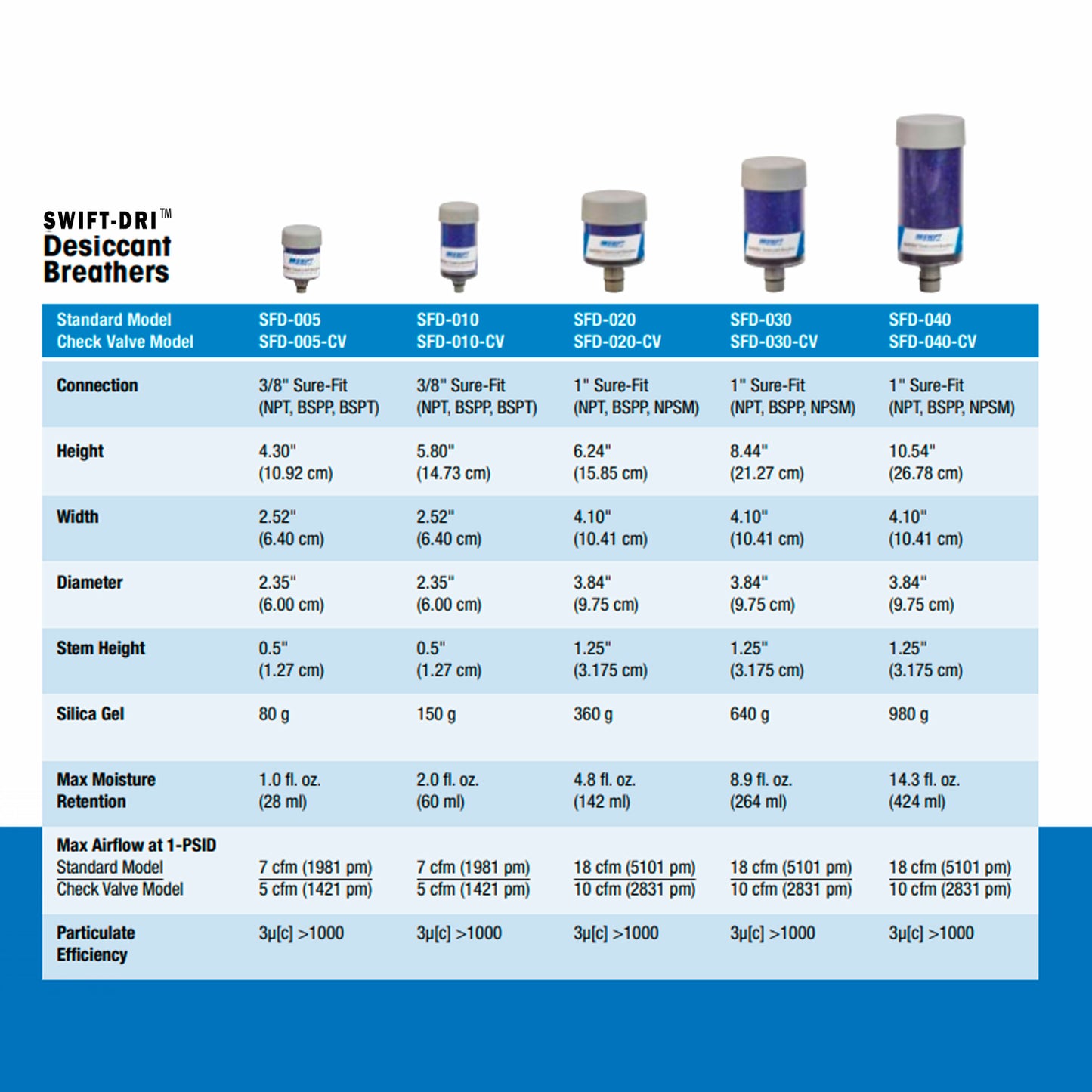

Product Specifications

• PARTICULATE EFFICIENCY: 3 microns [c]>1000
• MOISTURE ABSORBING MEDIA: Swift-Dri Silica Gel, 360 grams
• MAX MOISTURE RETENTION: 4.8 fluid ounces
• MAX AIRFLOW AT 1-PSID: 10 cubic feet per minute
• TEMPERATURE RANGE: -20° F to 200° F

Swift-Dri Desiccant Breather with Check Valve SFD-020-CV

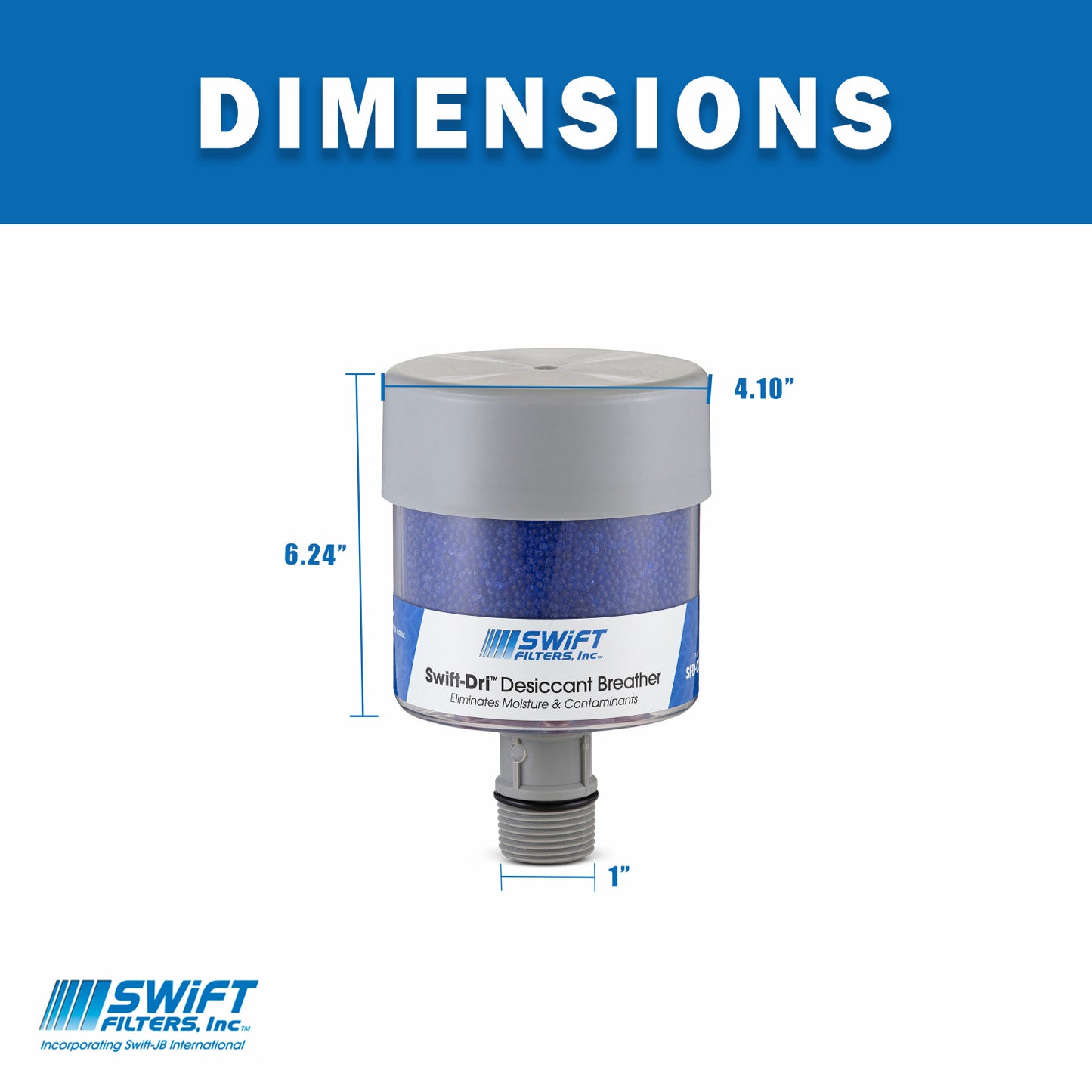

Product Dimensions
CONNECTION SIZE: 1 inch Sure-Fit (NPT, BSPP, NPSM)
HEIGHT: 6.24 inches, stem height 1.25 inch.
WIDTH: 4.10 inches
DIAMETER: 3.84 inches

Swift Filters, Inc. maintains high standards in desiccant breather performance and quality to provide customers with a reliable product. Be sure to read all product specifications and dimensions before ordering to ensure you receive the correct hydraulic filtration product.
