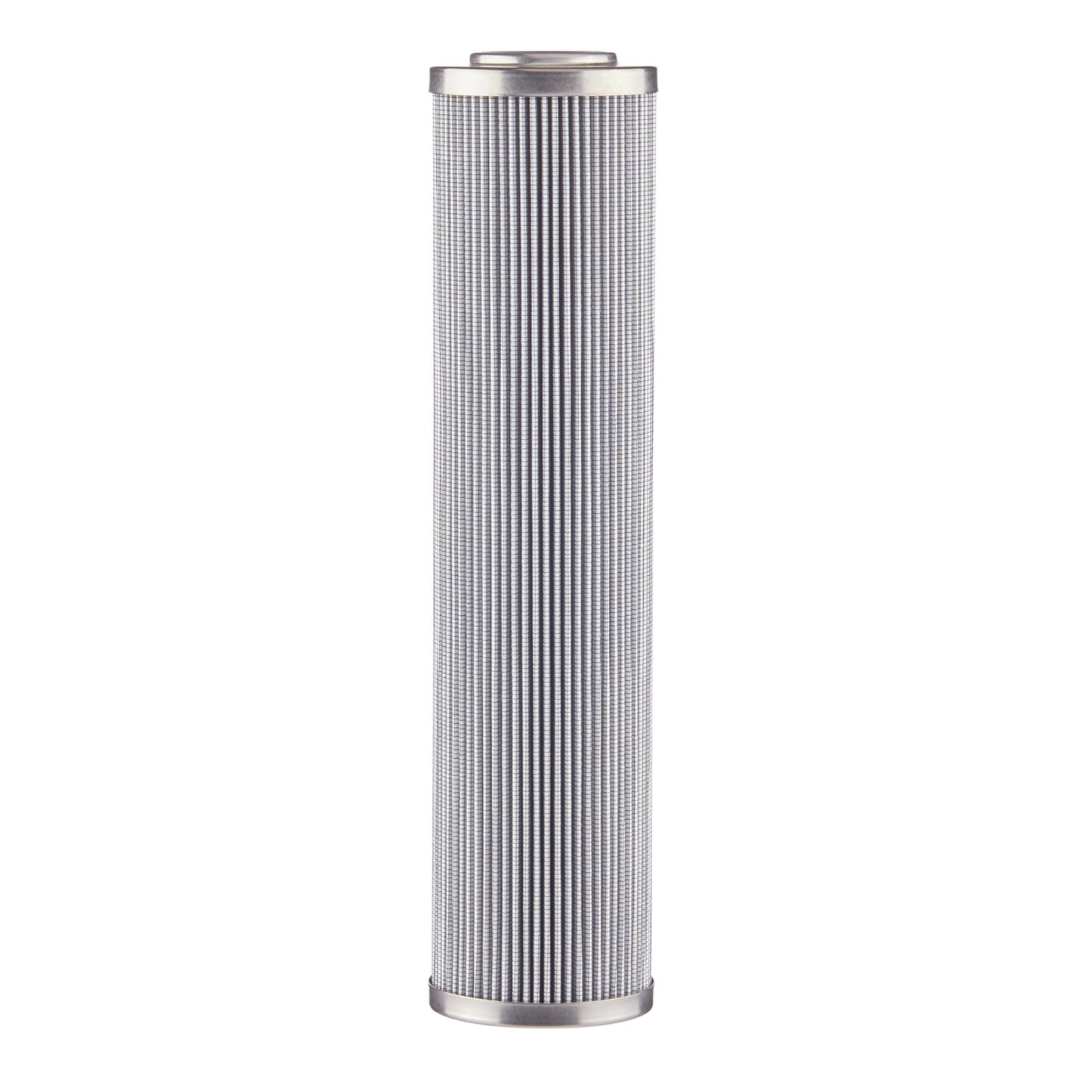

Cartridge Filter Element SF9600-13-6UMV 6 Micron Microglass

Swift Filters SF9600-13-6UMV is a highly durable Cartridge Filter Element  ideal for fuels and petroleum-based fluid filtration applications.

All our microglass filter elements feature high performance SWIFTGLASS® filter media comprised of high strength dual-phase synthetic fibers bonded with a stable resin set into a pleated multilayer construction, making it one of the most efficient and cost-effective hydraulic cartridge filter elements available in the market today.

The Swift Filters Microglass Replacement Filter Element Advantage

• An economical true equivalent in fit form and function
• Ideal for critical hydraulic filter applications
•  Maximum performance wedge wire filter elements that typically exceeds OEM interchange
• 3 micron capacity for increased dirt holding and particle capture efficiency

SF9600-13-6UMV Filter Element Specifications

• MICRON RATING: 6 micron
• MEDIA TYPE: SWIFTGLASS™
• SEAL MATERIAL: Viton (Fluorocarbon Type A)
• COLLAPSE: Can withstand pressure up to 150 PSI
• DIMENSIONS: Inner Diameter 1.720 in., Outer Diameter 3.090 in., Overall Length 12.930 in.
• TEMPERATURE RATING: -40°F  to +250°F

Made in the USA, Swift Filters specializes in the design and manufacture of high-quality replacement filter elements and custom filter elements for a wide variety of industries.
