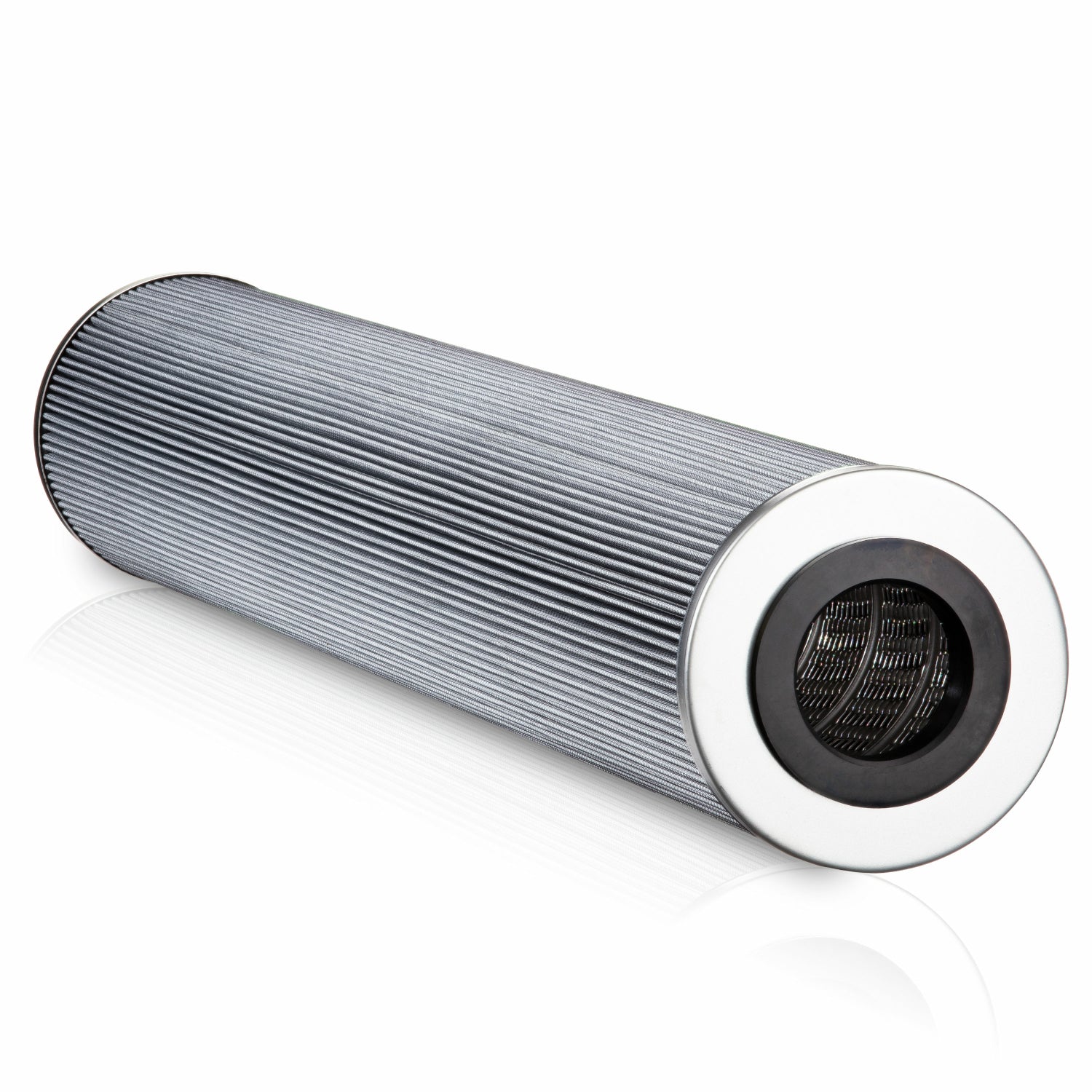

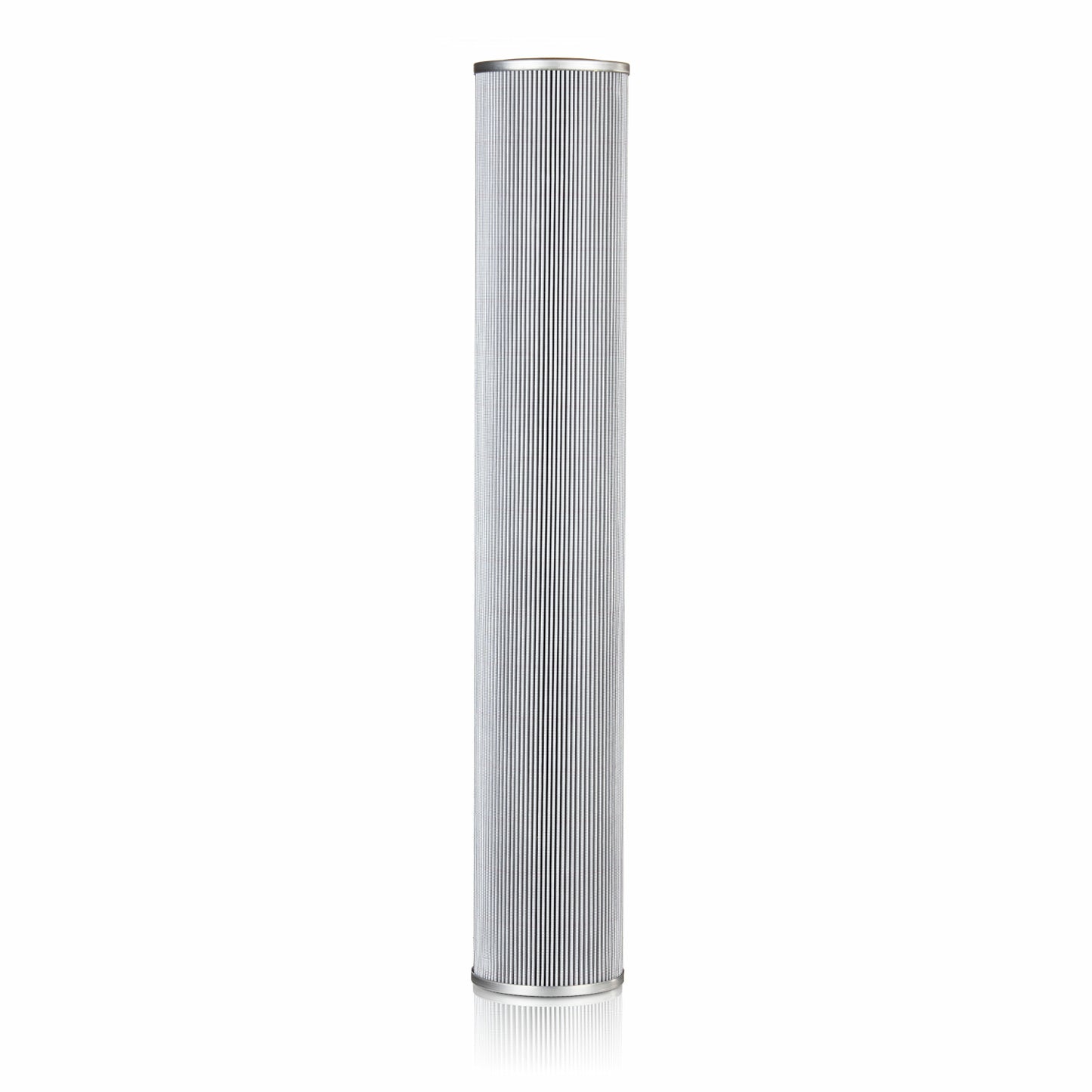

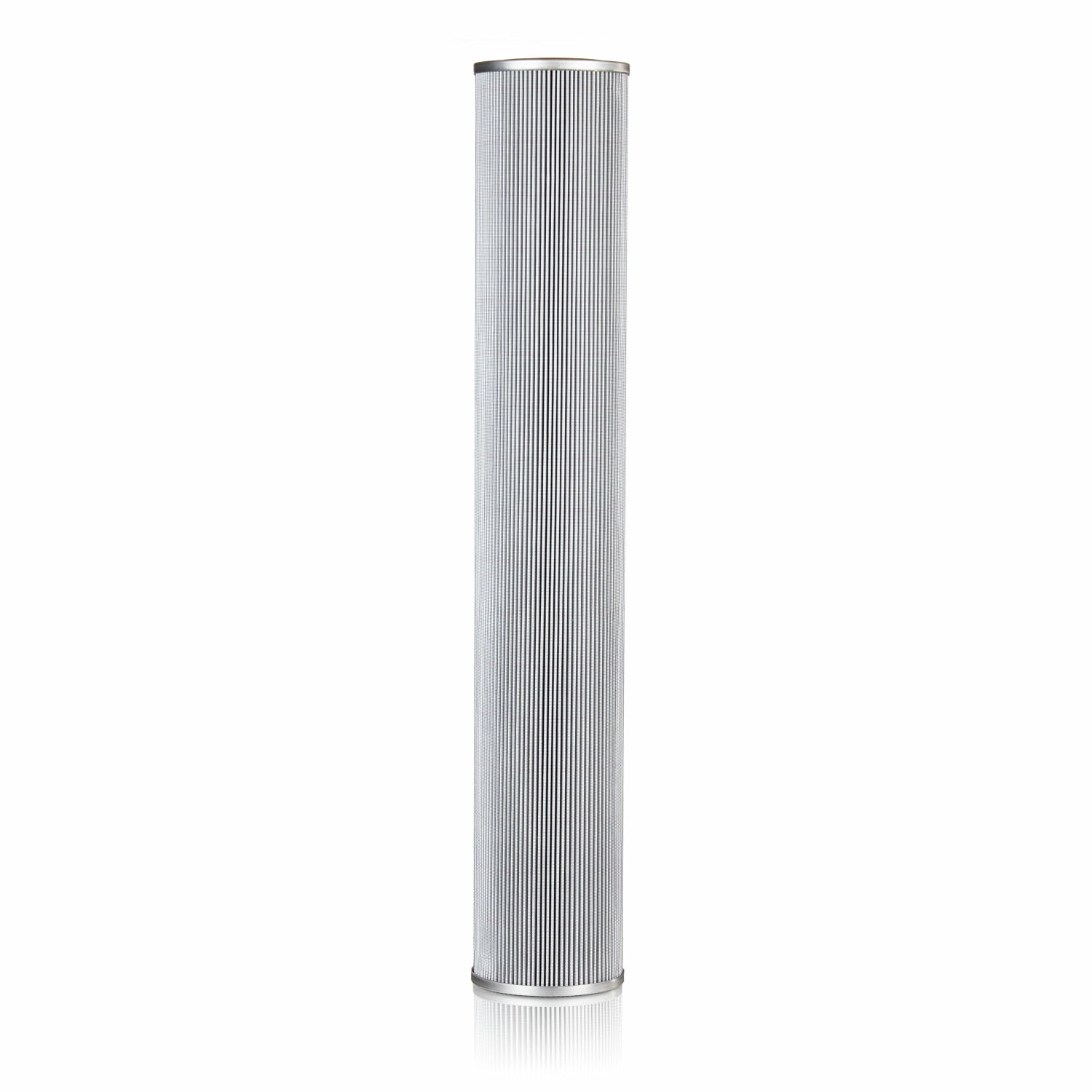

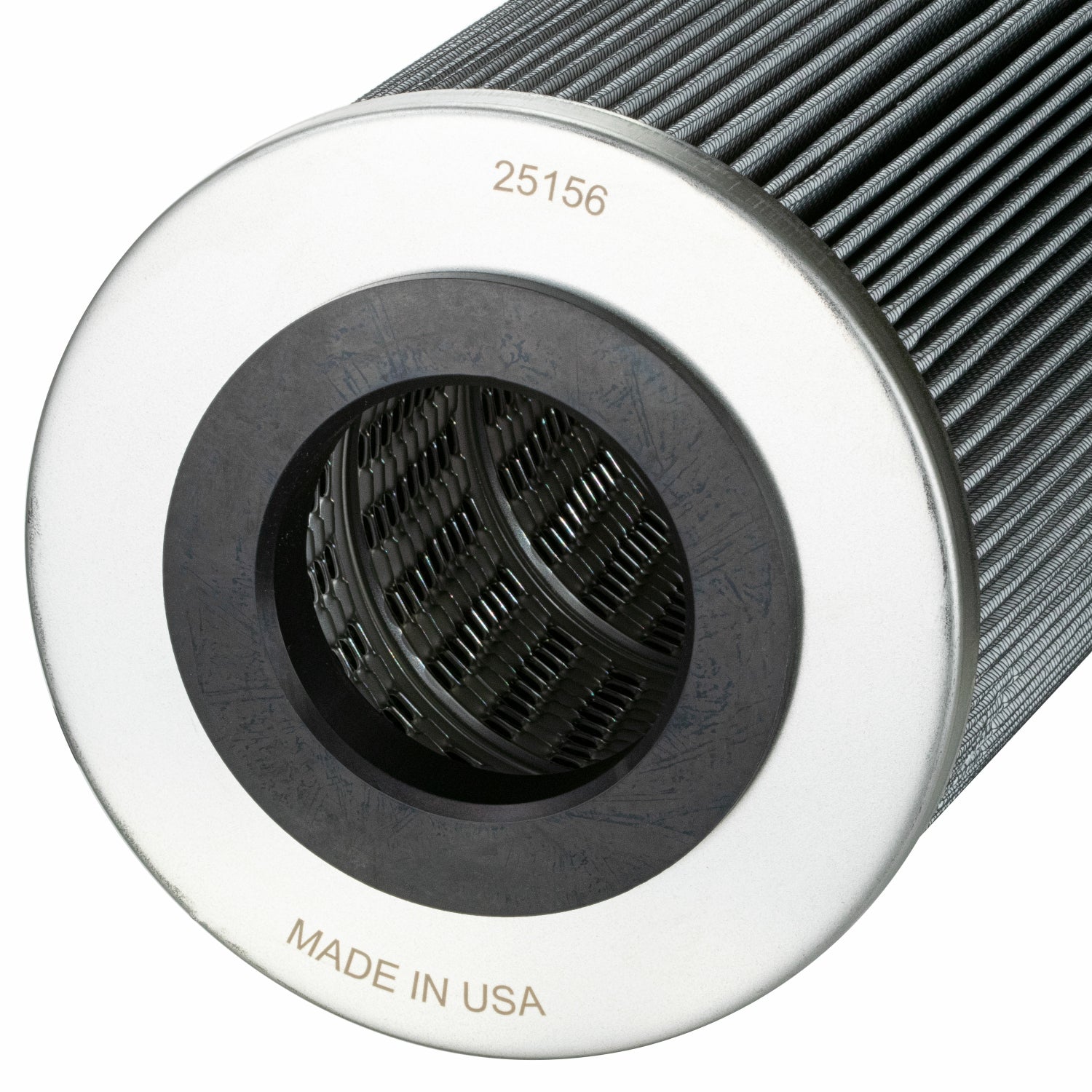

Cartridge Filter Element SF0101-36-25UM 25 Micron Microglass

The SF0101-36-25UM is a highly durable 25 micron cartridge filter element ideal for use with  fuels and petroleum-based fluid hydraulic filtration applications.

All our microglass filter elements feature high performance SWIFTGLASS® microglass filter media comprised of high strength dual-phase synthetic fibers bonded with a stable resin set into a pleated multilayer construction, making it one of the most efficient and cost-effective hydraulic cartridge filter elements available in the market today.

The Swift Filters Microglass Replacement Filter Element Advantage
• An economical true equivalent in fit form and function
• Ideal for critical hydraulic filter applications
• Maximum performance wedge wire filter elements that typically exceeds OEM
  interchange
• 25 micron capacity for increased dirt holding and particle capture efficiency

Unparalleled Microglass Filter Element Performance
• Offers the highest level of hydraulic filtration
• Beta Ratio 1000 ensures 99.9% contamination control across flow surges and
   temperature changes offering longer system life and less downtime
• Easier servicing- no tools needed

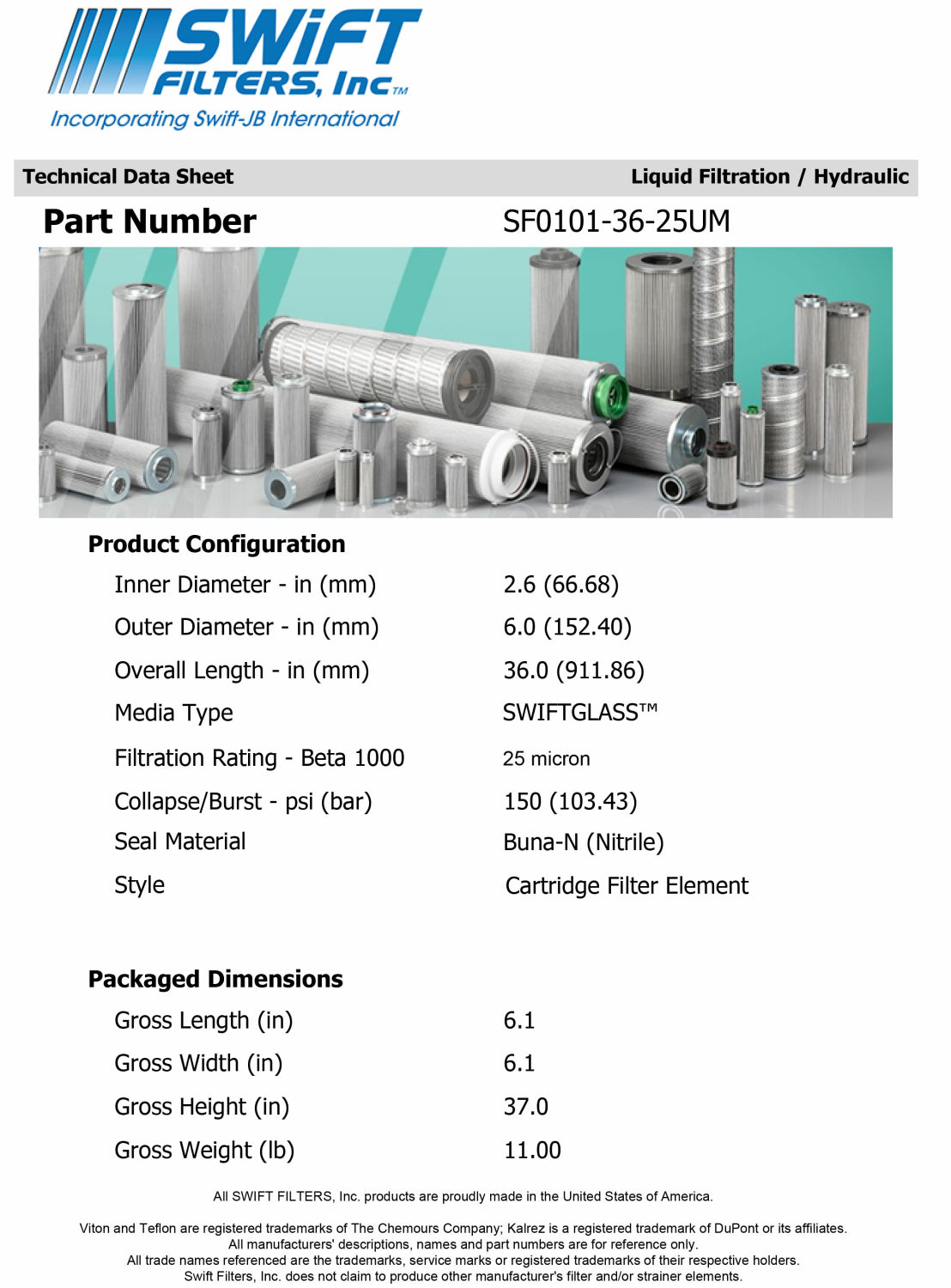

SF0101-36-25UM Filter Element Specifications
• MICRON RATING: 25 micron
• MEDIA TYPE: SWIFTGLASS
• SEAL MATERIAL: Buna-N (Nitrile)
• COLLAPSE: Can withstand pressure up to 150 PSI

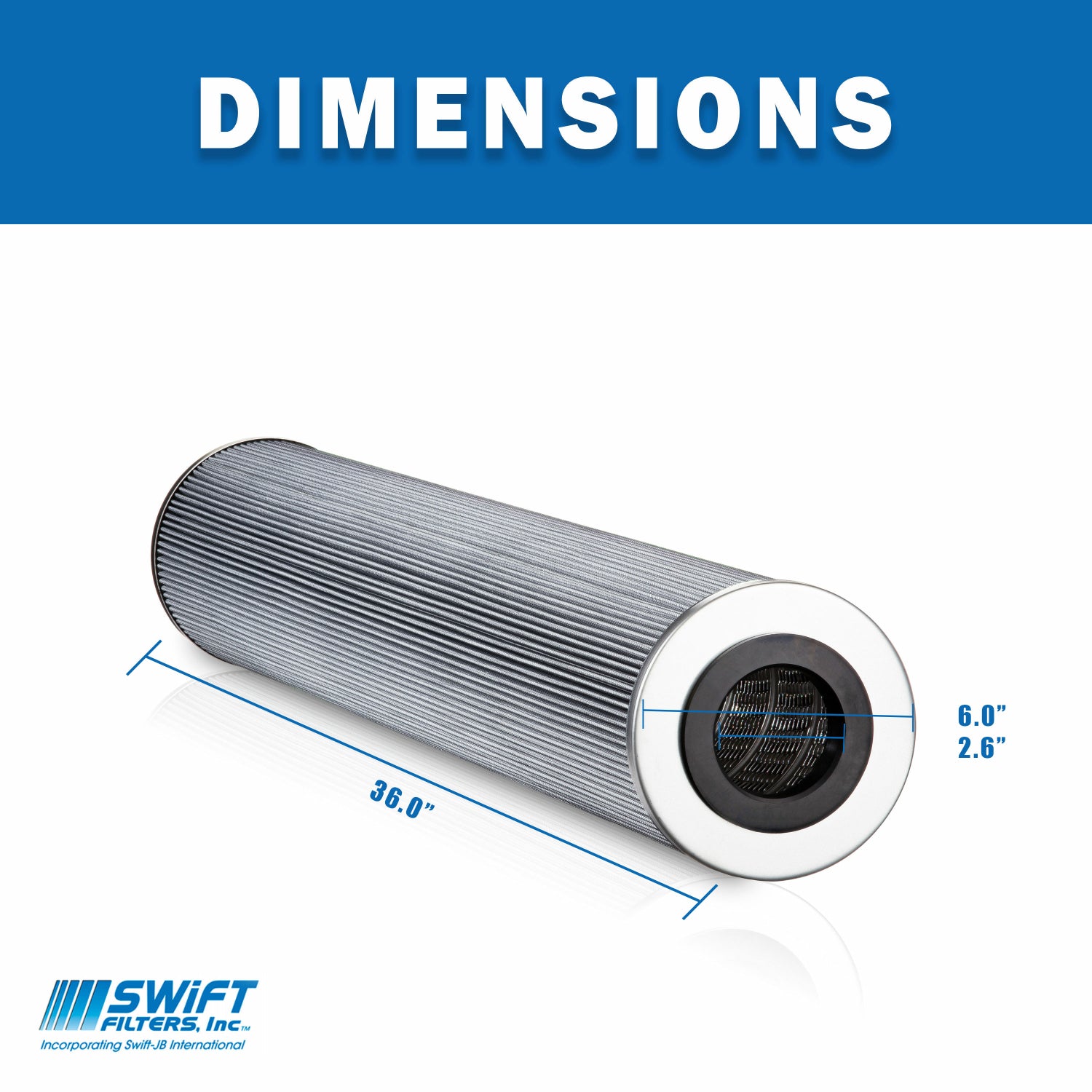

• DIMENSIONS: Inner Diameter 2.625 in., Outer Diameter 6.000 in., Overall Length 35.900 in.
• TEMPERATURE RANGE: -40°F to +250°F
