Cartridge Filter Element SF0101-16-3UM 3 Micron Microglass

The SF0101-16-3UM is a highly durable 3 micron cartridge filter element ideal for fuels and petroleum-based fluid filtration applications.

All our microglass filter elements feature high performance SWIFTGLASS® filter media comprised of high strength dual-phase synthetic fibers bonded with a stable resin set into a pleated multilayer construction, making it one of the most efficient and cost-effective hydraulic cartridge filter elements available in the market today.

The Swift Filters Microglass Replacement Filter Element Advantage

• An economical true equivalent in fit form and function
• Ideal for critical hydraulic filter applications
•  Maximum performance microglass filter elements that typically exceeds OEM interchange
• Increased dirt holding and particle capture efficiency

SF0101-16-3UM Filter Element Specifications

• MICRON RATING: 3 micron
• MEDIA TYPE: SWIFTGLASS
• SEAL MATERIAL: Buna-N (Nitrile)
• COLLAPSE: Can withstand pressure up to 150 PSI

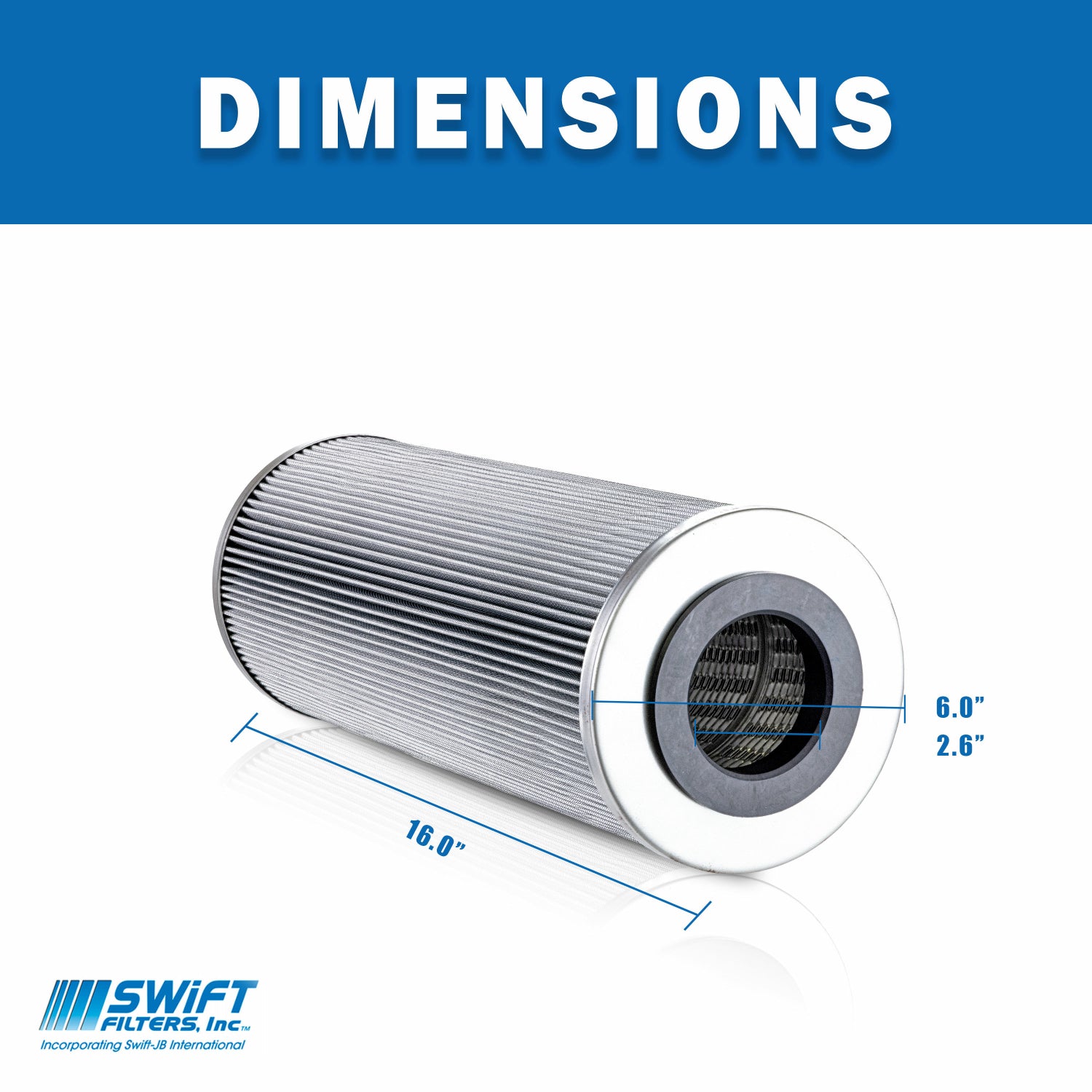

• DIMENSIONS: Inner Diameter 2.625 in., Outer Diameter 6.0 in., Overall Length 16.0 in.
• TEMPERATURE RATING: -40°F  to +250°F

Made in the USA, Swift Filters specializes in the design and manufacture of high-quality replacement filter elements and custom filter elements for a wide variety of industries.
