Cartridge Filter Element SF50020 25 Micron Microglass

WE CARRY A LARGE INVENTORY OF JOHN CRANE INDUFIL INR-Z-00700-A-CC25 FILTER ELEMENT REPLACEMENTS.
PLEASE CONTACT US FOR A QUOTE

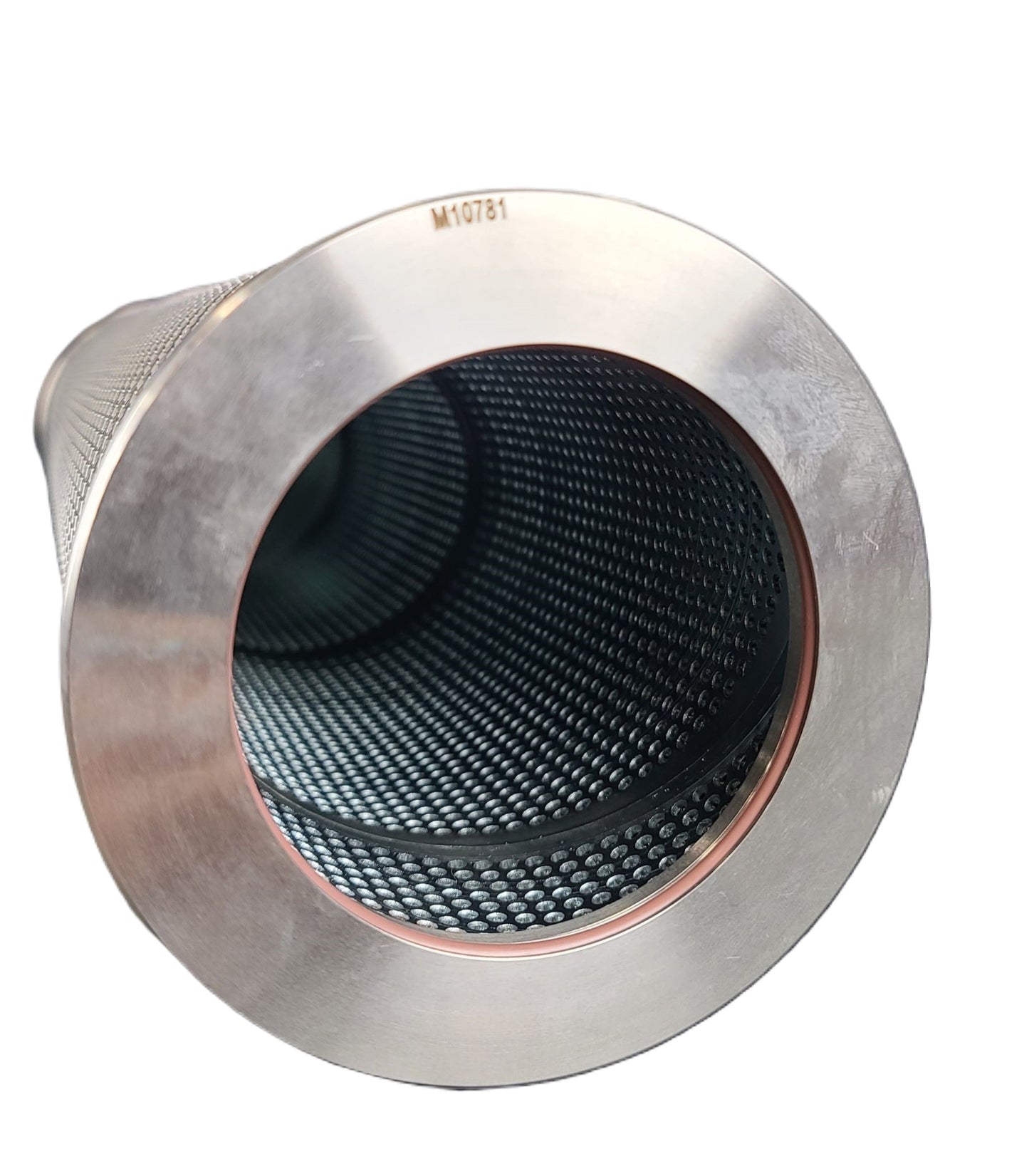

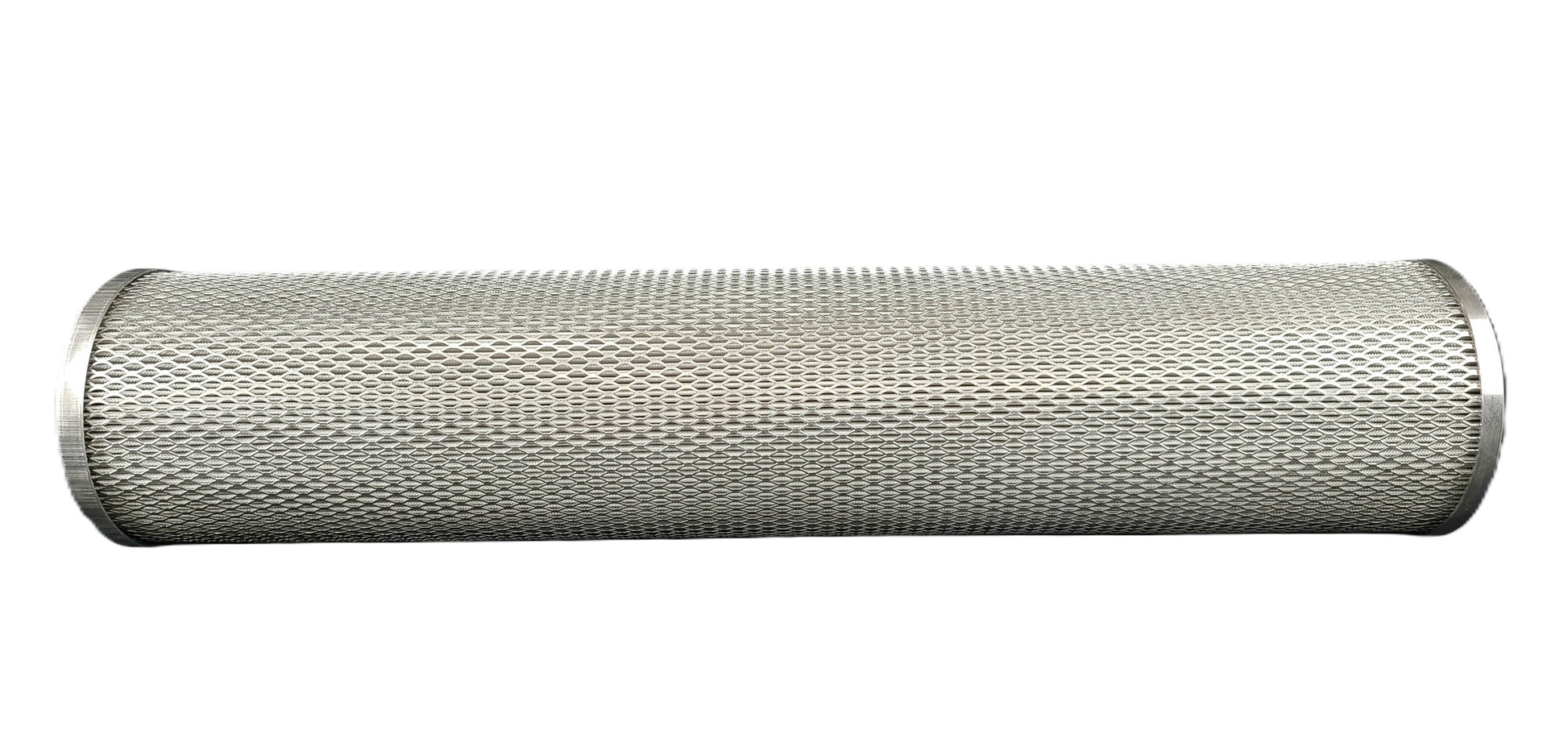

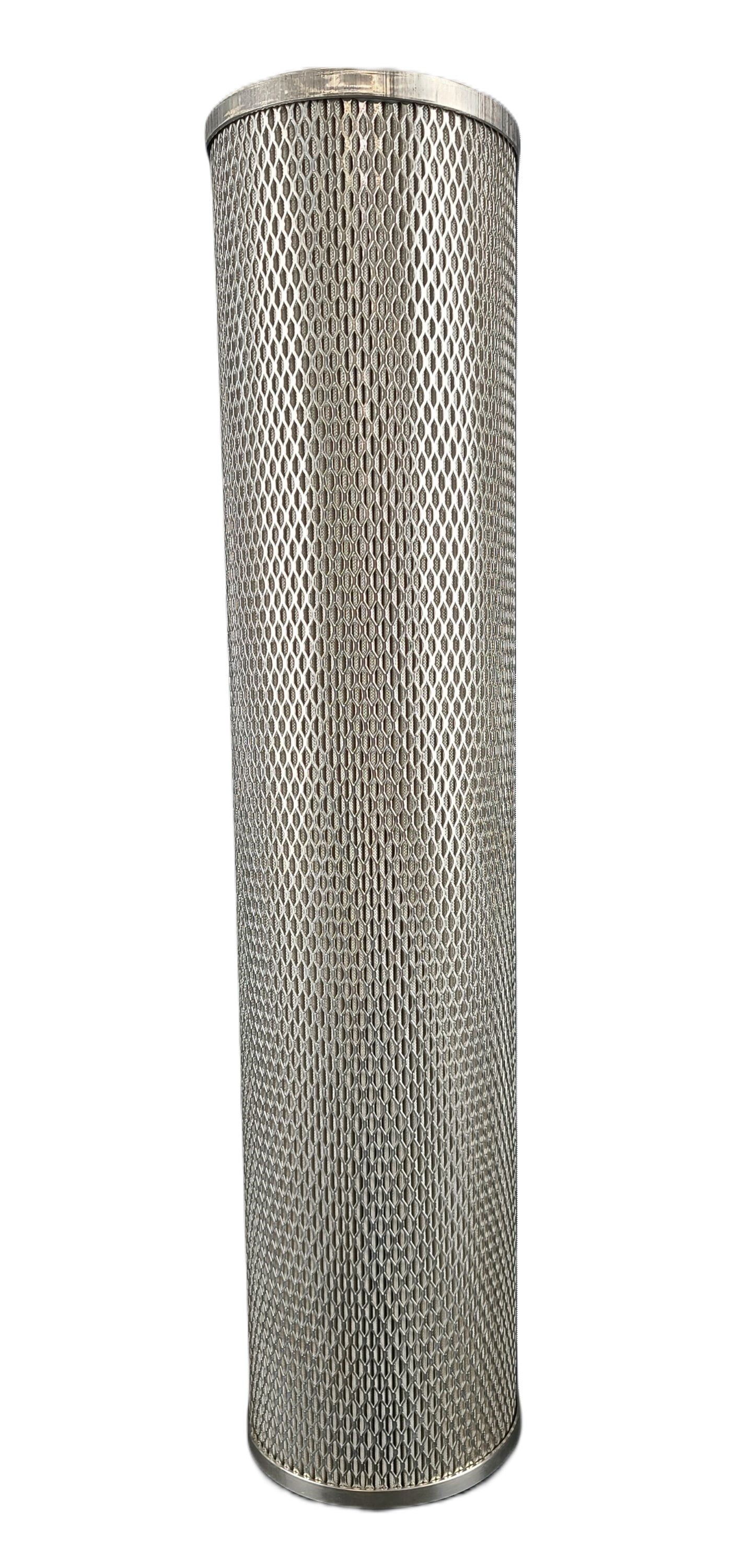

Swift Filters SF50020 microglass cartridge filter element is a highly durable 25 micron hydraulic filter element.

It is an economical high performance true equivalent John Crane Indufil filter element replacement for INR-S-00085-H-SS-UPG in fit, form, and function for the following cartridge filter elements with a Viton seal:
•    INR-Z-00700-A-CC25-V

We also manufacture Indufil filter element replacements for the following filter elements:
•    INR-Z-00700-A-CC25-AD
•    INR-Z-00700-A-CC25-F
•    INR-Z-00700-A-CC25-ED

The Swift Filters Microglass Indufil Replacement Filter Advantage
Our hydraulic filter elements are engineered to exceed OEM filtration requirements.

Made from SWIFTGLASS® microglass filter media featuring high strength dual-phase synthetic fibers bonded with a stable resin set into a pleated multilayer construction.

Swift Filters filter elements are known to be one of the most efficient and cost-effective Indufil hydraulic cartridge filter element replacements available in the market today.

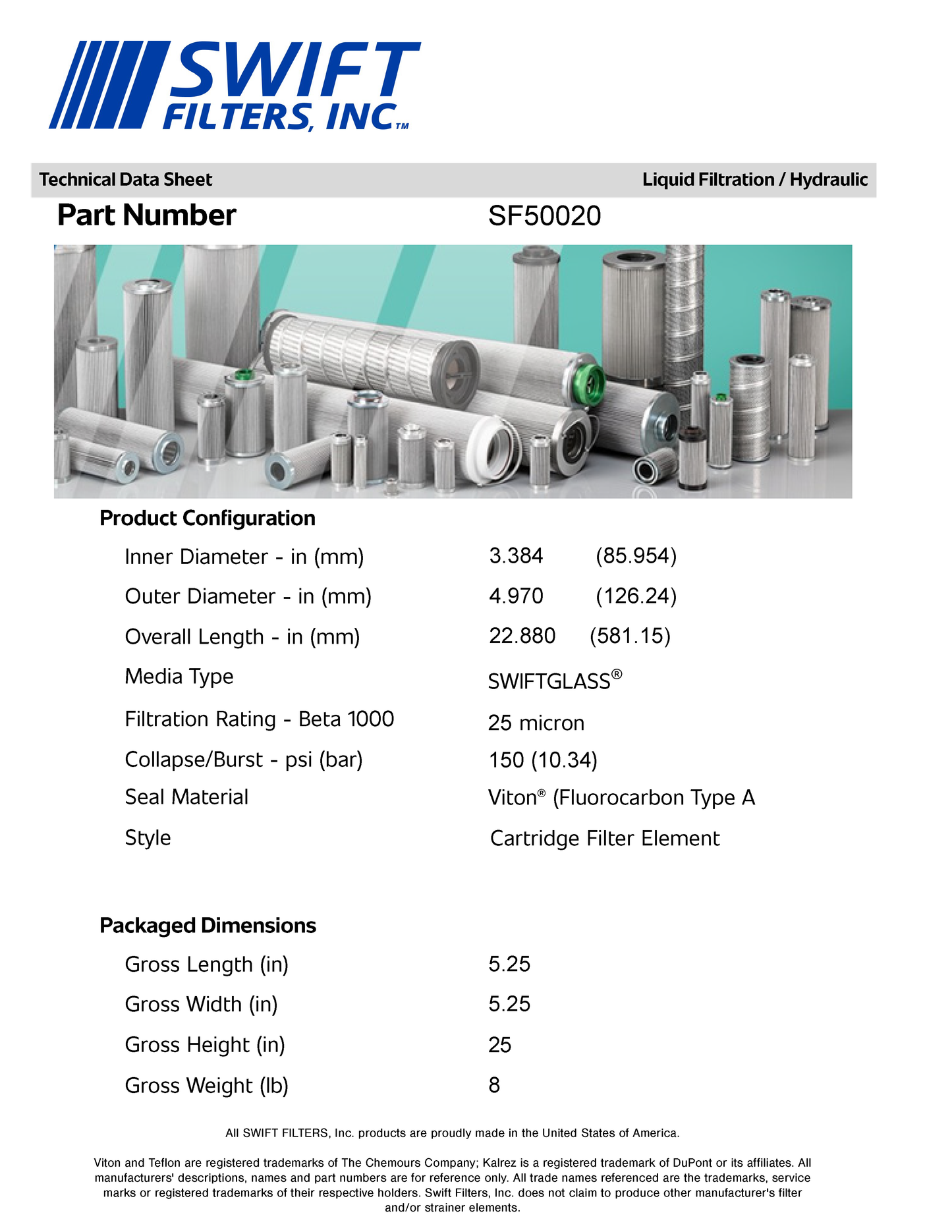

SF50020 Cartridge Filter Element Specifications
•    MICRON RATING: 25 micron
•    MEDIA TYPE:  SWIFTGLASS® high performance microglass
•    SEAL MATERIAL: Viton® (Fluorocarbon Type A)
•    COLLAPSE: Can withstand pressure up to 150 PSI

FILTER ELEMENT DIMENSIONS:
Inner Diameter     3.384 in.
Outer Diameter    4.970 in.
Overall Length    22.880 in.

ISO16889 multi-pass and Dynamic Filter Efficiency (DFE) testing
Efficiencies up to 99.9% (ß1>1000)

Ideal for Demanding Hydraulic Filtration Applications Including:
Hydraulic fluids
Lubrication oils (including synthetic)
Fuels including gasoline and diesel
Coolants and process fluids
Water glycols (HFAE, HFAS, HFB and HFC)
Seal gas filtration

WE CARRY A LARGE INVENTORY OF JOHN CRANE INDUFIL INR-Z-00700-A-CC25 FILTER ELEMENT REPLACEMENTS.
PLEASE CONTACT US FOR A QUOTE

Made in the USA, Swift Filters specializes in the design and manufacture of high-quality replacement filter elements and custom filter elements for a wide variety of industries.
