Cartridge Filter Element SF50004 10 Micron Microglass

WE CARRY A LARGE INVENTORY OF JOHN CRANE INDUFIL IINR-S-00320-CC010 FILTER ELEMENT REPLACEMENTS.
PLEASE CONTACT US FOR A QUOTE

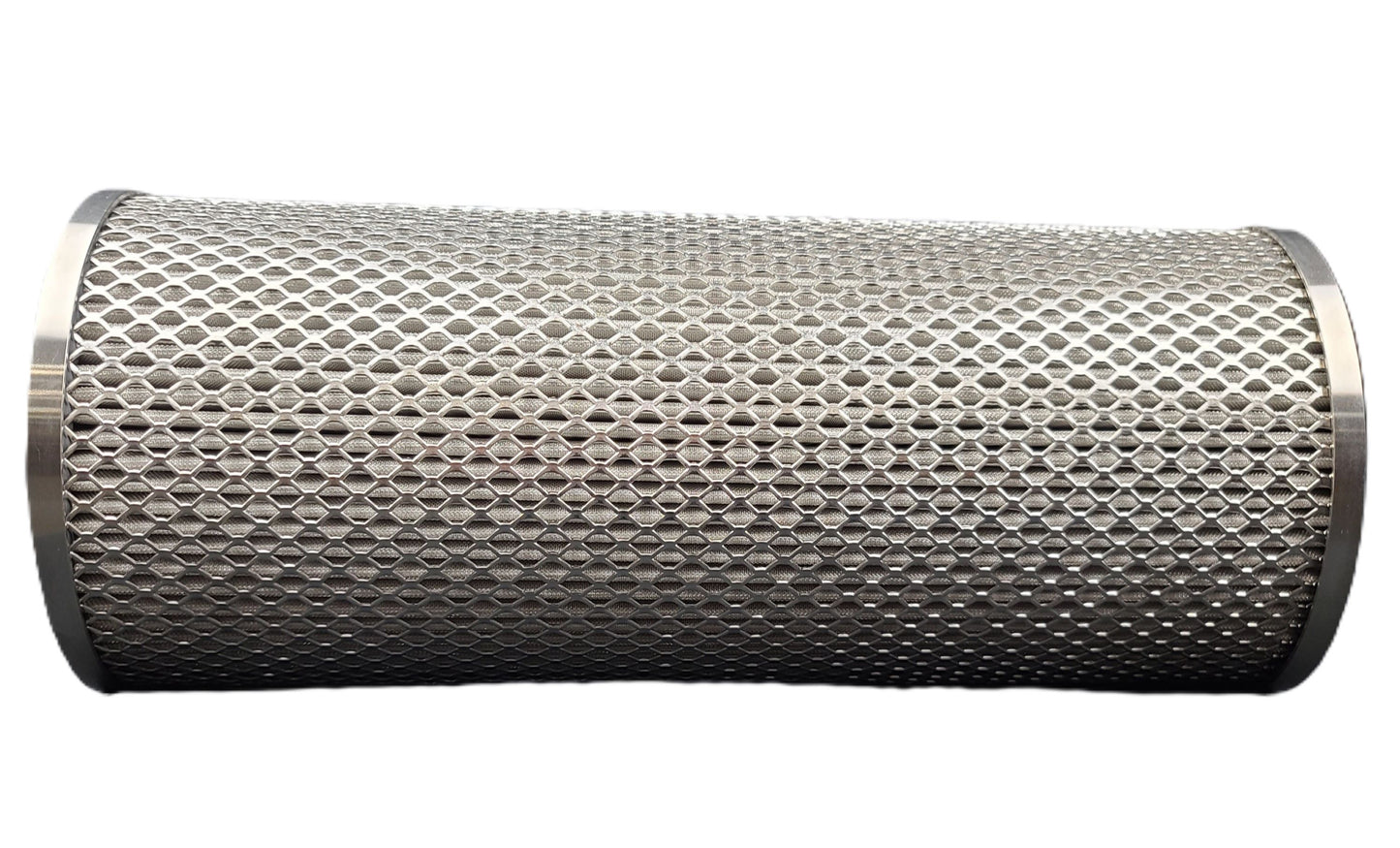

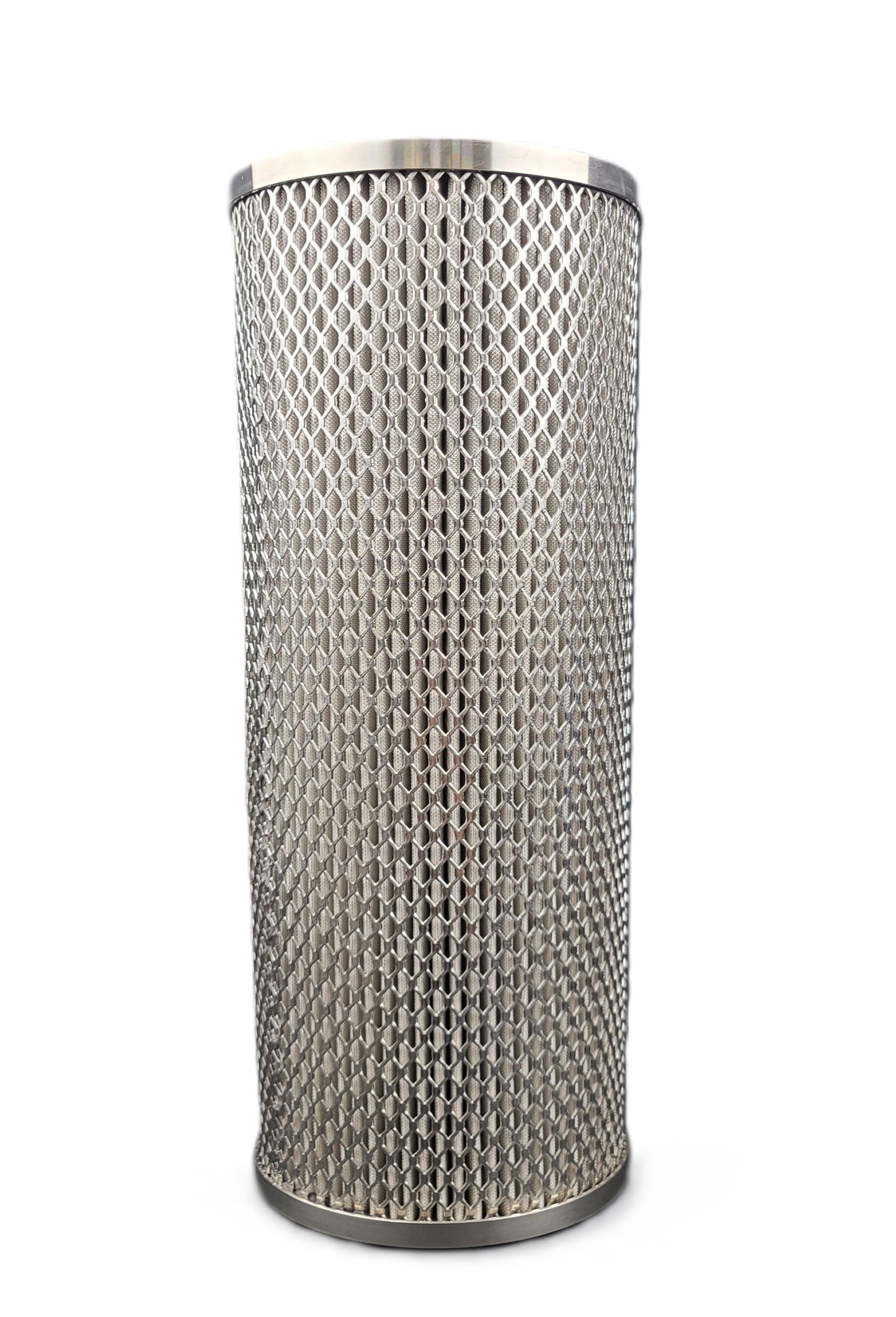

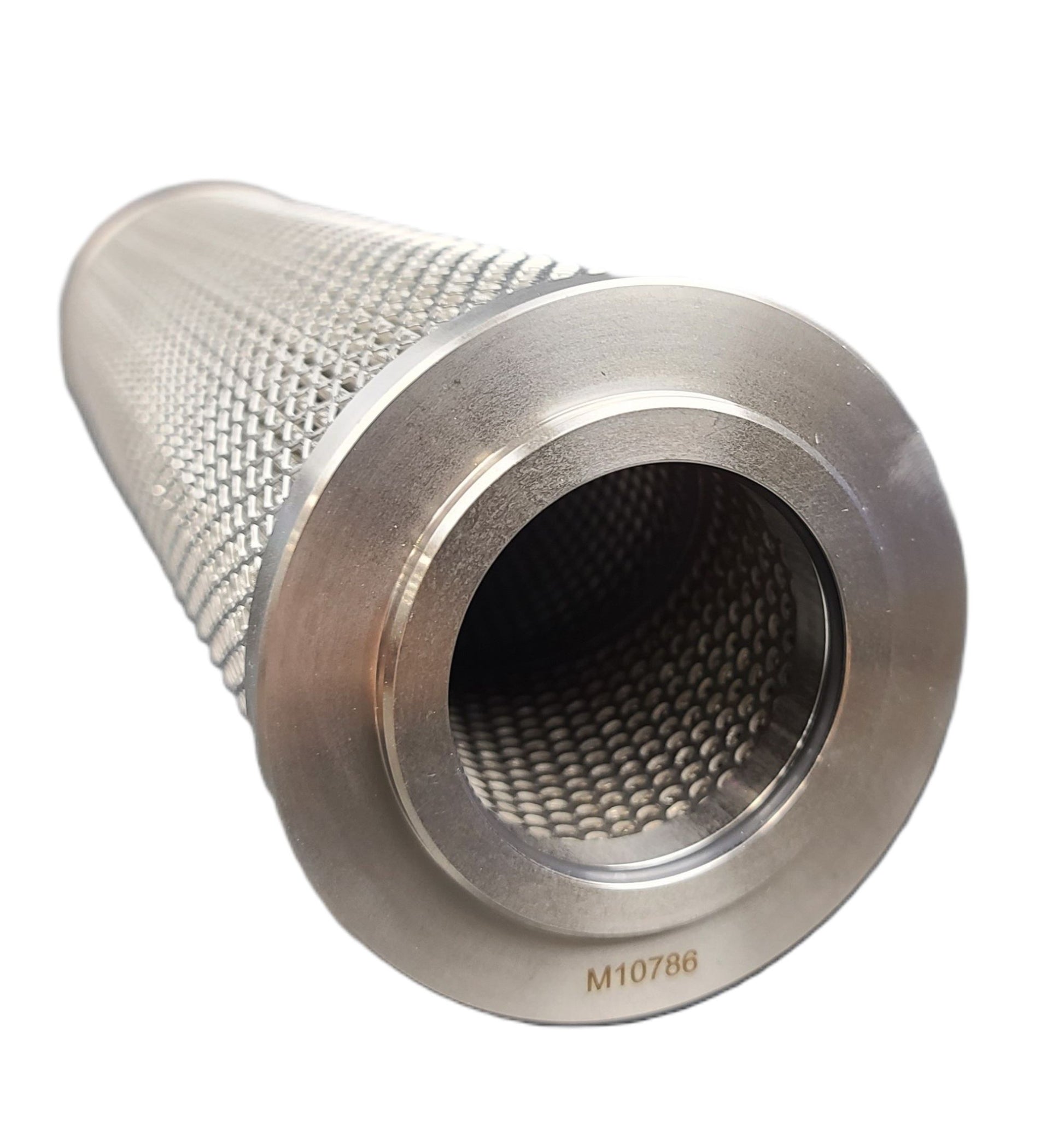

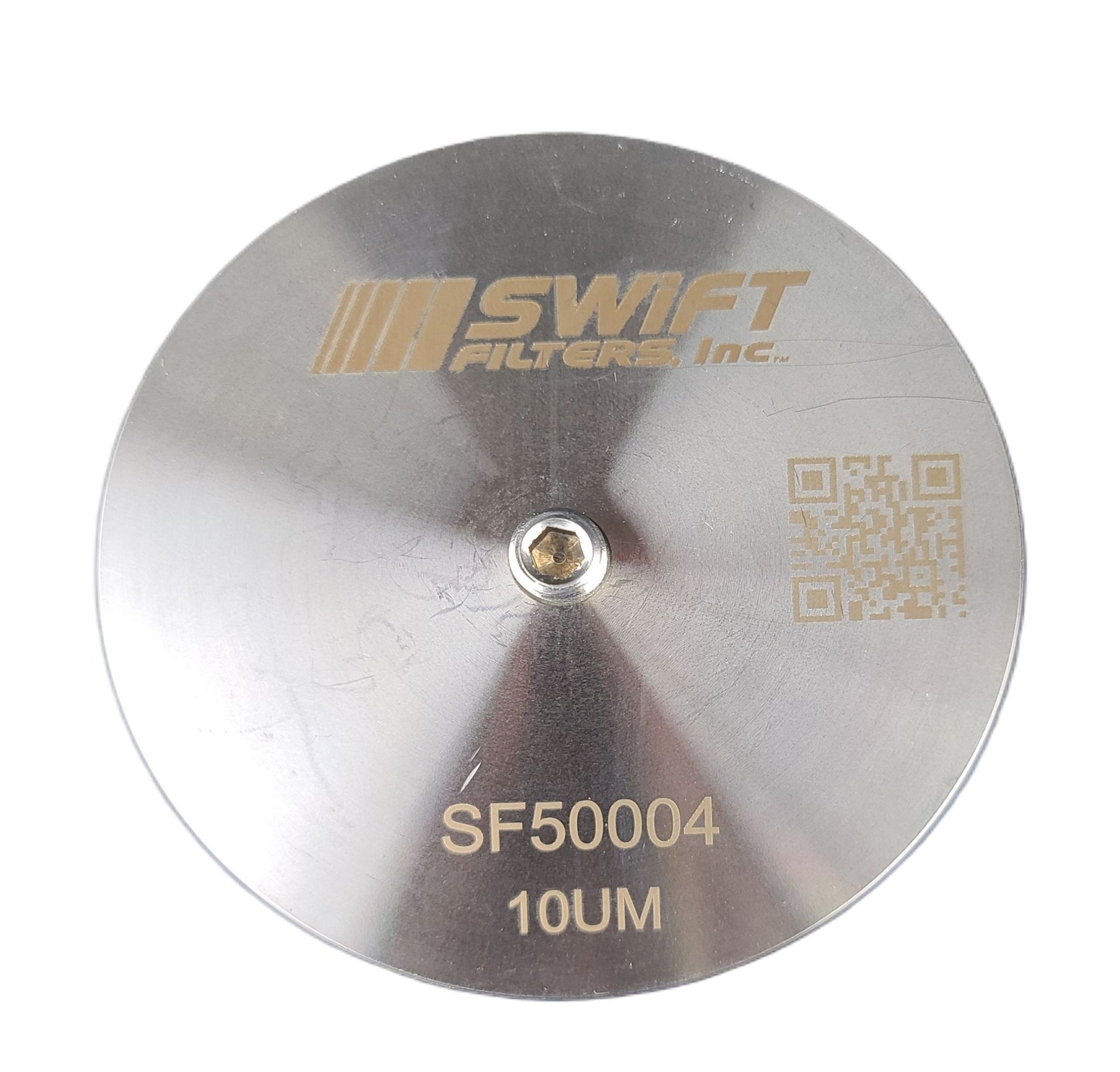

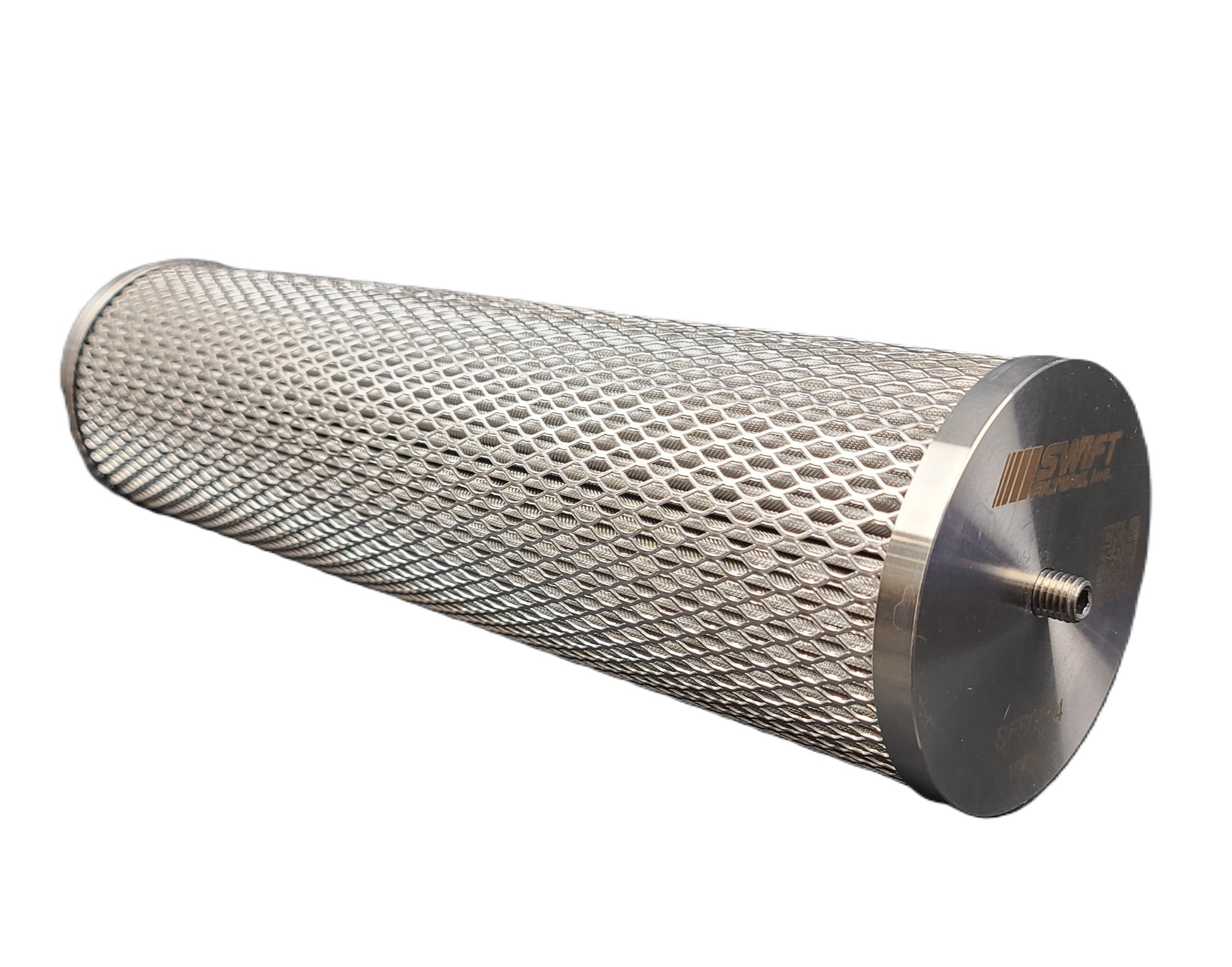

Swift Filters SF50004 microglass cartridge filter element is a highly durable 10 micron hydraulic filter element.

It is an economical high performance true equivalent John Crane Indufil filter element INR-S-00320-CC010 replacement in fit, form and function for the following cartridge filter elements with a Viton seal:
•    INR-S-00200-CC10-V

We also manufacture Indufil filter element replacements for the following additional filter elements:
•    INR-S-00200-CC10-AD
•    INR-S-00200-CC10-F
•    INR-S-00200-CC10-ED

The Swift Filters Microglass Indufil Replacement Filter Advantage
Our hydraulic filter elements are engineered to exceed OEM filtration requirements.

Made from SWIFTGLASS® microglass filter media featuring high strength dual-phase synthetic fibers bonded with a stable resin set into a pleated multilayer construction.

Swift Filters filter elements are known to be one of the most efficient and cost-effective Indufil hydraulic cartridge filter element replacements available in the market today.

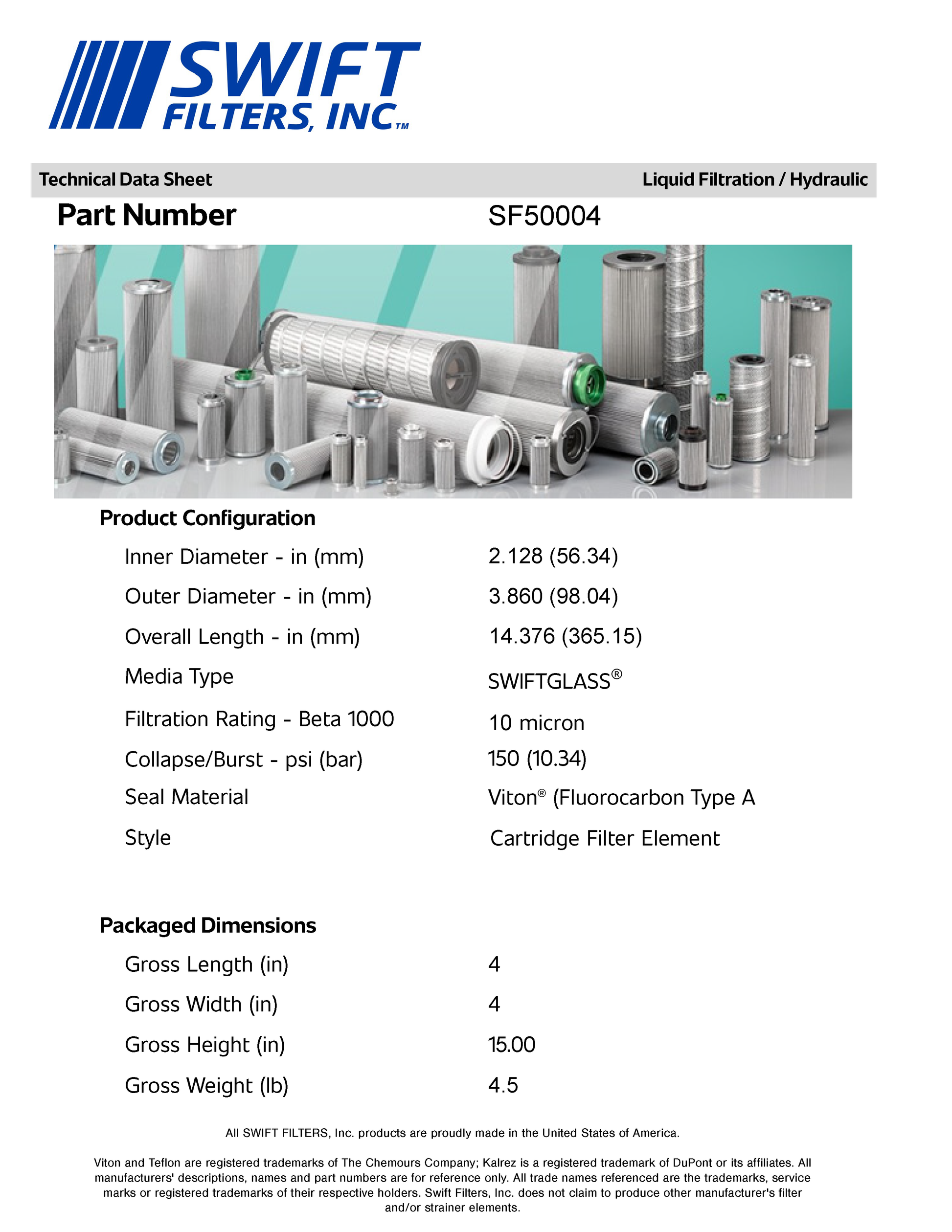

SF50004 Cartridge Filter Element Specifications
•   MICRON RATING: 10  micron
•   MEDIA TYPE: SWIFTGLASS® high performance microglass
•   SEAL MATERIAL: Viton® (Fluorocarbon Type A)
•   COLLAPSE: Can withstand pressure up to 150 PSI

FILTER ELEMENT DIMENSIONS:
Inner Diameter   2.128 in.
Outer Diameter  3.860 in.
Overall Length  14.376 in.

ISO16889 multi-pass and Dynamic Filter Efficiency (DFE) testing
Efficiencies up to 99.9% (ß1>1000)

Ideal for Demanding Hydraulic Filtration Applications Including:
Hydraulic fluids
Lubrication oils (including synthetic)
Fuels including gasoline and diesel
Coolants and process fluids
Water glycols (HFAE, HFAS, HFB and HFC)
Seal gas filtration

WE CARRY A LARGE INVENTORY OF JOHN CRANE INDUFIL IINR-S-00320-CC010 FILTER ELEMENT REPLACEMENTS.
PLEASE CONTACT US FOR A QUOTE

Made in the USA, Swift Filters specializes in the design and manufacture of high-quality replacement filter elements and custom filter elements for a wide variety of industries.
